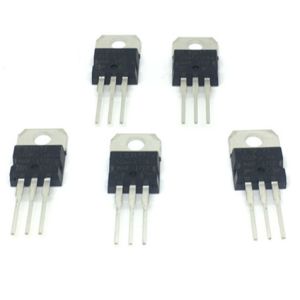

TIP111 Semiconductor Triode Emitter Base Voltage 5V Industrial Use

Product Categories

Shenzhen Hua Xuan Yang Electronics Co.,Ltd

Contact Now

Name: TIP111 Semiconductor Triode Emitter Base Voltage 5V Industrial Use
Brand: Hua Xuan Yang
Price: 1 USD

Add to Cart

TO-220-3L Plastic-Encapsulate Transistors

TIP41/41A/41B/41C TRANSISTOR (NPN)

FEATURE

MAXIMUM RATINGS (Ta=25℃ unless otherwise noted)

Symbol	Parameter	Value	Unit
VCBO	Collector-Base Voltage	80	V
VCEO	Collector-Emitter Voltage	80	V
VEBO	Emitter-Base Voltage	5	V
I_C	Collector Current -Continuous	2	A
P_C	Collector Dissipation	2	W
T_J	Junction Temperature	150	℃
Tstg	Storage Temperature	-55 to +150	℃

ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified)

Parameter	Symbol	Test conditions	Min	Typ	Max	Unit
Collector-base breakdown voltage	V(BR)CBO	I_C=10mA,I_E=0	80			V
Collector-emitter sustaining voltage	VCEO(sus)	I_C=30mA,I_B=0	80			V
Emitter-base breakdown voltage	V(BR)EBO	I_E=10mA,I_C=0	5			V
Collector cut-off current	ICEO	V_CE=40V,I_B=0			2	mA
Collector cut-off current	ICBO	V_CB=80V,I_E=0			1	mA
Emitter cut-off current	IEBO	V_EB=5V,I_C=0			2	mA
DC current gain	hFE(1)	V_CE=4V,I_C=1A	1000
DC current gain	hFE(2)	V_CE=4V,I_C=2A	500
Collector-emitter saturation voltage	VCE(sat)	I_C=2A,I_B=8mA			2.5	V
Base-emitter voltage	VBE	V_CE=4V,I_C=2A			2.8	V
Collector output capacitance	Cob	V_CB=10V,I_E=0,f=0.1MHz			100	pF

TO-220-3L Package Outline Dimensions

TO-220-3L Plastic-Encapsulate Transistors TIP42/42A/42B/42C TRANSISTOR (PNP)
