WSP4012 P/N Channel Mosfet Transistor , High Power Transistor For Load Switch

QM4803D N-Ch and P-Channel MOSFET

Description

The QM4803D is the highest performance trench

N-ch and P-ch MOSFET with extreme high cell

density , which provide excellent RDSON and

gatecharge for most of the synchronous buck

converter applications .

The QM4803D meet the RoHS and Green Product

requirement 100% EAS guaranteed with

full function reliability approved.

Features

z Advanced high cell density Trench technology

z Super Low Gate Charge

z Excellent CdV/dt effect decline

z 100% EAS Guaranteed

z Green Device Available

Applications

z High Frequency Point-of-Load Synchronous Buck Converter for MB/NB/UMPC/VGA
z Networking DC-DC Power System
z CCFL Back-light Inverter

Product Summery

Absolute Maximum Ratings

Thermal Data

N-Channel Electrical Characteristics (TJ=25 ℃, unless otherwise noted)

Guaranteed Avalanche Characteristics

Diode Characteristics

Note :

1. The data tested by surface mounted on a 1 inch2 FR-4 board with 2OZ copper.

2. The data tested by pulsed , pulse width ≦ 300us , duty cycle ≦ 2%

3. The power dissipation is limited by 150℃ junction temperature

4. The data is theoretically the same as ID and IDM , in real applications , should be limited by total power dissipation.

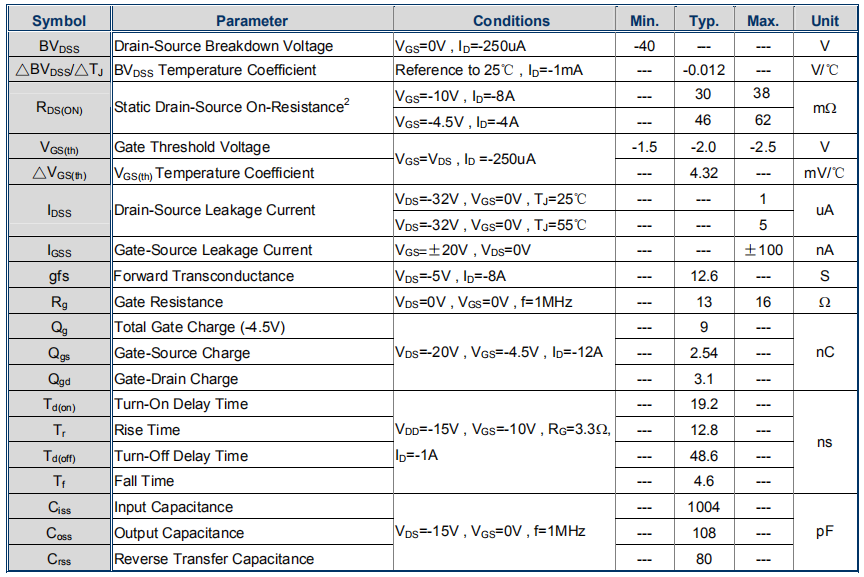

P-Channel Electrical Characteristics (TJ=25 ℃, unless otherwise noted)

Guaranteed Avalanche Characteristics

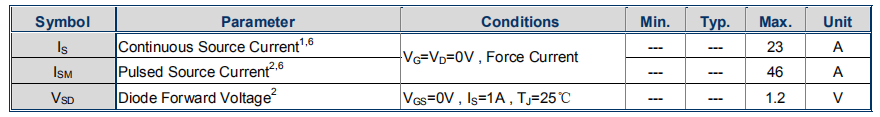

Diode Characteristics

Note :

1. The data tested by surface mounted on a 1 inch2

FR-4 board with 2OZ copper.

2. The data tested by pulsed , pulse width ≦ 300us , duty cycle ≦ 2%

3. The power dissipation is limited by 150℃ junction temperature 4.The data is theoretically the same as ID and IDM , in real applications , should be limited by total power dissipation.

N-Channel Typical Characteristics

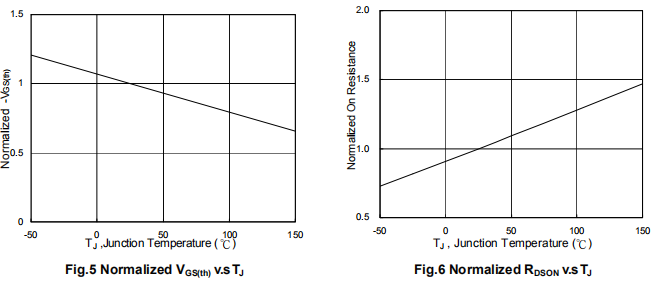

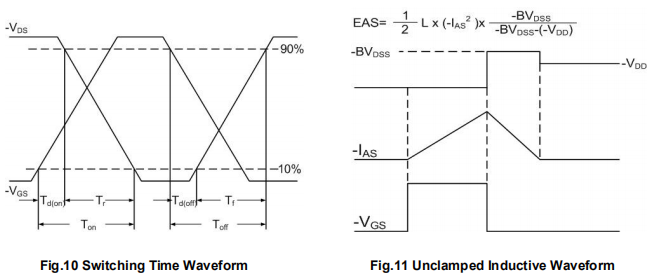

P-Channel Typical Characteristics
