RL201 THRU RL207 High Voltage Bridge Rectifier , High Current Rectifier Diode

Product Categories

Shenzhen Hua Xuan Yang Electronics Co.,Ltd

Contact Now

Name: RL201 THRU RL207 High Voltage Bridge Rectifier High Current Rectifier Diode
Brand: Hua Xuan Yang
Price: 1 USD

Add to Cart

RL201 THRU RL207 Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Ampere

FEATURES

molded plastic technique
Low reverse leakage
High forward surge current capability
High temperature soldering guaranteed:250 C/10 seconds,0.375”(9.5mm) lead length,5 lbs. (2.3kg) tension
The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
Construction utilizes void-free

MECHANICALDATA

Case:JEDEC DO-41 molded plastic body

Terminals:Plated axial leads,solderable per MIL-STD-750,

Method2026

Polarity:Color band denotes cathode end

Mounting Position:Any

Weight:0.014ounce,0.40grams

MAXI MUMRATINGS AND ELECTRICAL CHARACTERISTICS

Note:

1. Measured at 1MHz and applied reverse voltage of 4.0VD.C.

2. Thermal resistance from junction to ambientat 0.375(9.5mm) lead length,P.C.B.mounted

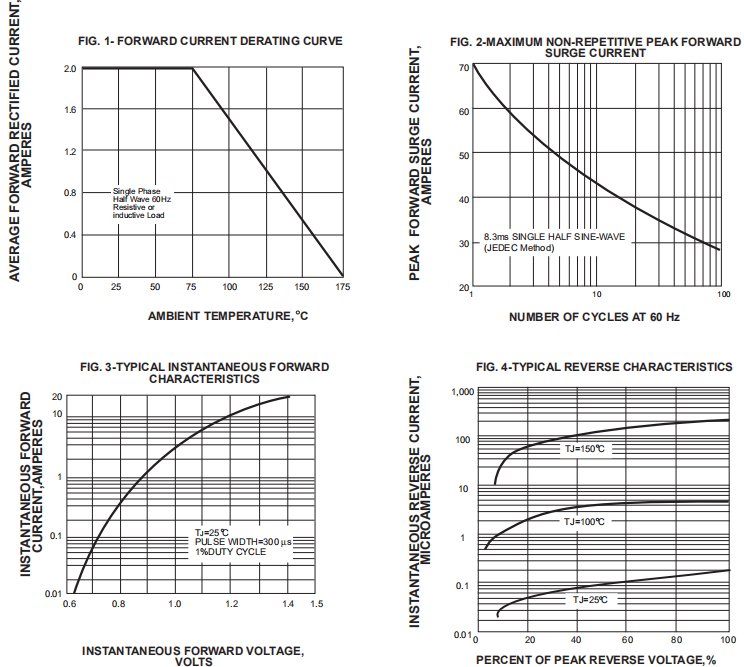

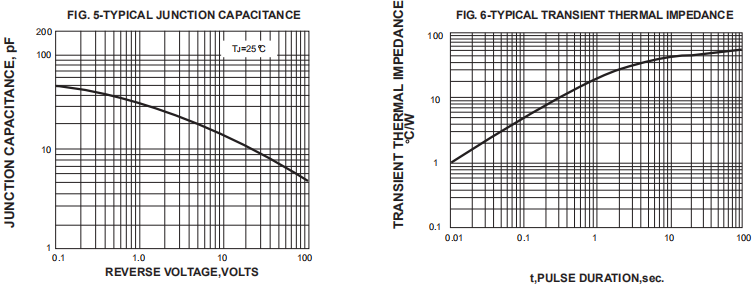

RATINGS AND CHARACTERISTIC CURVES 1N5400 THRU 1N5408

Product Tags:

high voltage bridge rectifier
