FR301 THRU FR307 Enhancement Mode Mosfet , High Voltage Power Mosfet

FR301 THRU FR307 FAST RECOVERY RECTIFIERS Reverse Voltage - 50 to 1000 Volts Forward Current - 3.0 Amperes

FEATURE

The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

Fast switching for high efficiency

Low reverse leakage

High forward surge current capability

High temperature soldering guaranteed:

250 C/10 seconds,0.375”(9.5mm) lead length,

5 lbs. (2.3kg) tension

MECHANICAL DATA

Case: JEDEC DO-201AD molded plastic body

Terminals: Plated axial leads, solderable per MIL-STD-750,

Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight:0.04 ounce, 1.10 grams

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

Note:

1. Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A

2. Measured at 1MHz and applied reverse voltage of 4.0V D.C.

3. Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounte

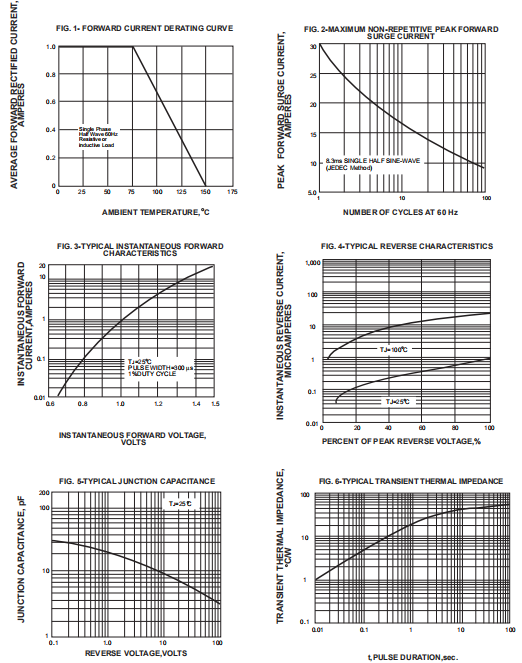

RATINGS AND CHARACTERISTIC CURVES 1N4942 THRU 1N4948
