Fast Recovery Dual Channel Mosfet Rs1a Thru Rs1m Surface Mount

RS1A THRU RS1M SURFACE MOUNT FAST RECOVERY RECTIFIER

FEATURE

Built-in strain relief,ideal for automated placement
High forward surge current capability
High temperature soldering guaranteed:
250 C/10 seconds at terminals
Glass passivated chip junction

The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

For surface mounted applications

Low reverse leakage

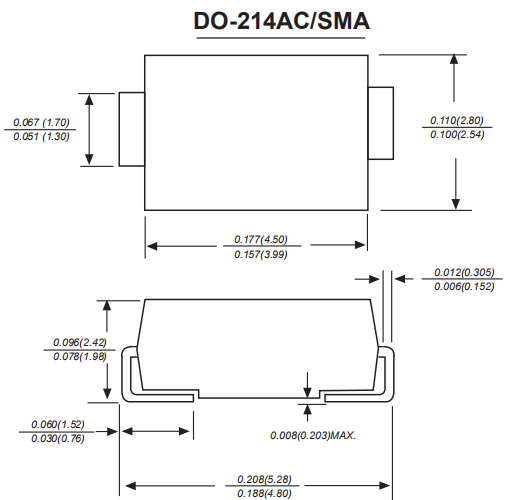

Case : JEDEC DO-214AC molded plastic body over passivated chip

Terminals : Solder plated, solderable per MIL-STD-750,

Method 2026

Polarity : Color band denotes cathode end

Mounting Position : Any

Weight :0.002 ounce, 0.07 grams

RS1A THRU RS1M SURFACE MOUNT FAST RECOVERY RECTIFIER

MECHANICAL DATA

Case: JEDEC DO-201AD molded plastic body

Terminals: Plated axial leads, solderable per MIL-STD-750,

Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight:0.002 ounce, 0.07 grams

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

Note:

1. Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A

2. Measured at 1MHz and applied reverse voltage of 4.0V D.C.

3. Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounte

RATINGS AND CHARACTERISTIC CURVES 1N4942 THRU 1N4948
