TO-251-3L Plastic-Encapsulate Transistors D882 TRANSISTOR (NPN)

FEATURE

Power Dissipation

MAXIMUM RATINGS (T_a =25 Š unless otherwise noted)

Symbol	Parameter	Value	Unit
VCBO	Collector-Base Voltage	40	V
VCEO	Collector-Emitter Voltage	30	V
VEBO	Emitter-Base Voltage	6	V
I_C	Collector Current -Continuous	3	A
P_C	Collector Power Dissipation	1.25	W
T_J	Junction Temperature	150	℃
Tstg	Storage Temperature	-55-150	℃

ELECTRICAL CHARACTERISTICS

Ta=25 Š unless otherwise specified

Parameter	Symbol	Test conditions	Min	Typ	Max	Unit
Collector-base breakdown voltage	V(BR)_CBO	I_C = 100μA, I_E=0	40			V
Collector-emitter breakdown voltage	V(BR)_CEO	I_C = 10mA, I_B=0	30			V
Emitter-base breakdown voltage	V(BR)_EBO	I_E= 100μA, I_C=0	6			V
Collector cut-off current	ICBO	V_CB= 40 V, I_E=0			1	µA
Collector cut-off current	ICEO	V_CE= 30 V, I_B=0			10	µA
Emitter cut-off current	IEBO	V_EB= 6 V, I_C=0			1	µA
DC current gain	hFE	V_CE= 2 V, I_C= 1A	60		400
Collector-emitter saturation voltage	VCE (sat)	I_C= 2A, I_B= 0.2 A			0.5	V
Base-emitter saturation voltage	VBE (sat)	I_C= 2A, I_B= 0.2 A			1.5	V
Transition frequency	f_T	V_CE= 5V, I_C=0.1A f =10MHz		90		MHz

CLASSIFICATION OF h_FE(2)

Rank	R	O	Y	GR
Range	60-120	100-200	160-320	200-400

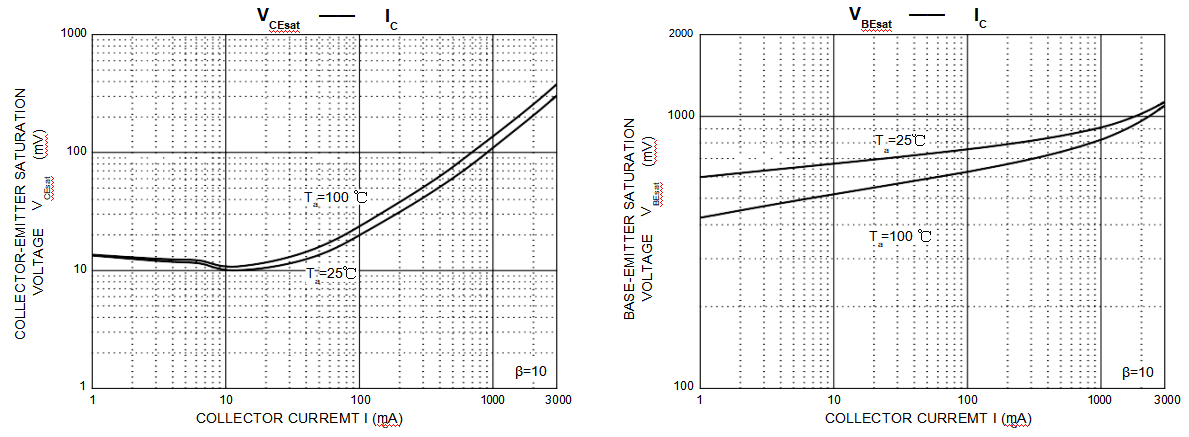

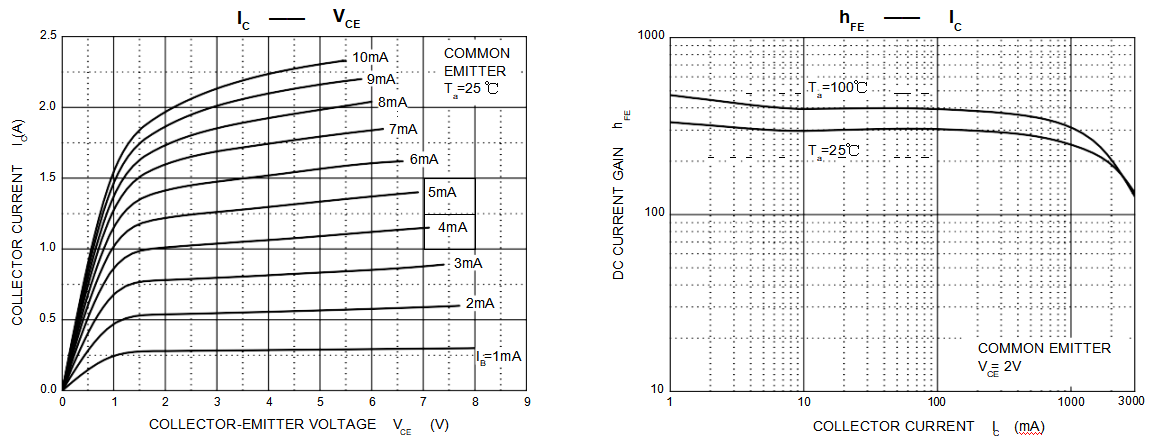

Typical Characteristics
